Anode Material Breakthroughs From Intelligent Graphitisation
Hunan Youre Technology Co., Ltd is a high-tech enterprise specialising in anode material production through graphitisation optimisation. The Company has accumulated more than 16 years of R&D experience focusing on new graphitisation technology, and now more than 30 patents and 15 software copyrights, with many of its technologies been successfully commercialised.
The Company is led by a professor from Central South University (CSU), with team members including professors, associate professors, senior engineers, intermediate engineers and master and doctoral technicians. By way of background, CSU is highly praised for its special in mining and metallurgy with a word-class non-ferrous discipline chains and advantages in the research of new energy materials.
Hunan Youre Technology Co., Ltd provides several products and services including:
Core Technologies and Services
Intelligent Power Supply for Anode Material Production
Hunan Youre Technology Co., Ltd intelligent power supply system adapts to material changes and scientifically regulates product performance. It uses operational data collection + 3D simulation modelling for full-process heating simulation + intelligent algorithms.
The system provides optimisation solutions for electrical equipment through compatibility analysis of electrical devices and parameters, and full-process electrical efficiency evaluation.
This improves the power supply curve, ultimately forming an intelligent power supply system that is compatible with the user’s existing production line, furnace type, and process. This system effectively avoids issues such as over-burning, under-burning, and material spillage during the user’s production process.

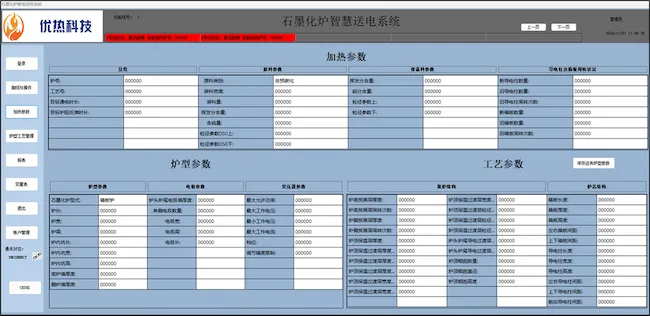

The image above is the dashboard interface for an industrial control system called the “Graphitisation Furnace Intelligent Power Delivery System”. The system is used for monitoring and controlling the operation of a graphitisation furnace, which allows for precise control and monitoring of furnace operations which is critical for product quality and energy efficiency used in the production of graphite anode materials.
The layout and terminology are consistent with industrial control software for high-temperature processes such as graphitisation. Functions include heating parameters (monitoring and setting), furnace type parameters (physical and configuration), process parameters (production/process settings), and navigation (Login, Switch Screens, Exit, etc.)

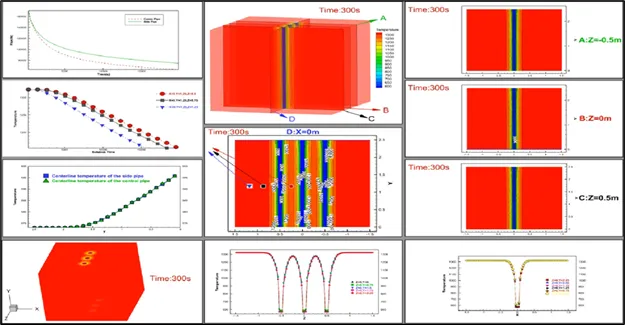

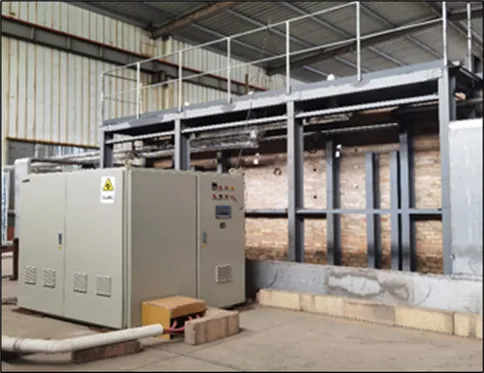

Active Cooling for Anode Material
Forced cooling system technology employs modular heat extraction equipment to achieve rapid cooling of the graphitisation furnace. This aims to “significantly increase production capacity, substantially reduce energy consumption, and markedly lower costs.”

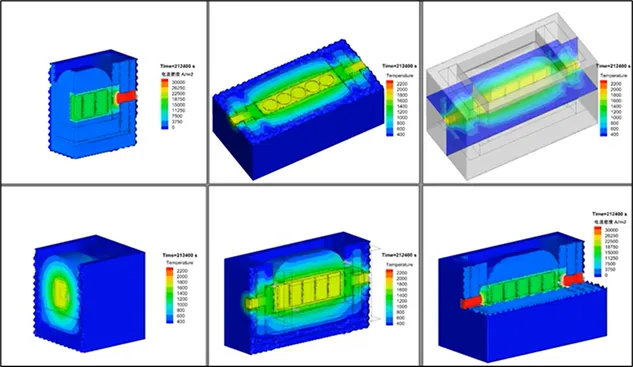

3D Simulation Design and Modelling
3D simulation design and modelling through data analysis and process parameter optimisation scientifically analyses the furnace structure and systematically solves design problems of the graphitisation furnace. The Company provides technical services such as efficient and clean integrated design of the graphitisation furnaces, design of power supply curves, and control of furnace spraying issues.
Waste Heat and Pressure Recovery Technology

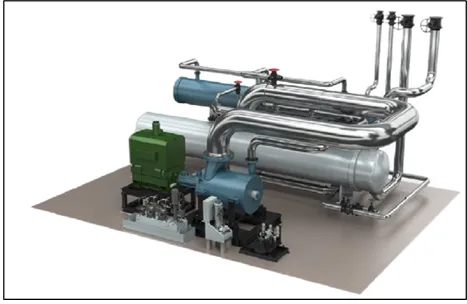

Hunan Youre Technology Co., Ltd provides a waste heat power generation efficient utilisation system through a miniaturised and integrated design to generate electricity from waste heat that is often lost during production. It improves energy utilisation efficiency and is suitable for various small to medium-scale waste heat locations.

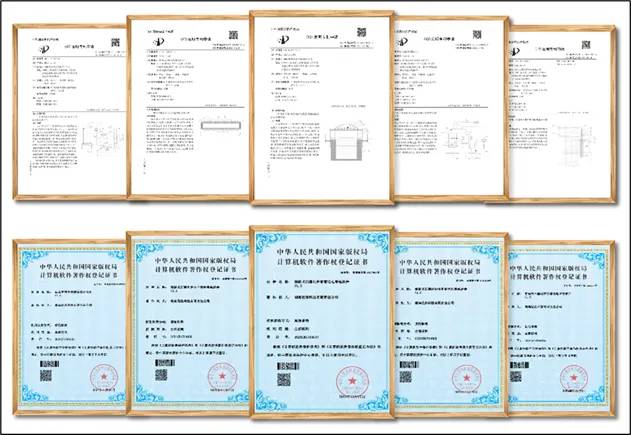

Intellectual Property and Copyrights
The Company holds over 30 patents, showcasing outstanding achievements in technological innovation and successfully achieving commercialisation.
Additionally, holding 15 core software copyrights, demonstrating technical strength and providing robust support for the industry’s intelligent transformation.
Anode Material and Graphitisation Patents
| Intellectual Property Name | Patent Number |
| Graphitisation furnace with rapid Active cooling System (US) | P23CS1NW00013 |
| Graphitisation furnace with a rapid active cooling system | 202211616471 |
| A high-temperature kiln waste heat recovery device coupled with molten salt heat extraction and storage, and its process | 202211607375 |
| An industrial kiln wide temperature range waste heat stable steam generation device and its process | 202211619240 |
| A high-temperature kiln with a movable radiation heat extraction device and cooling method | 202310007154 |
| A high-temperature sealed furnace with a movable high-temperature heat extraction device and cooling method | 202310007218 |
| A method and device for rapid cooling of high-temperature kilns based on mobile material absorption | 202310007620 |
| A heat extraction device, system, and method with over-temperature protection function | 202310319192 |
| A rapid cooling device for high-temperature powder material stockpiles | 202211616509 |
| A high-temperature solid heat storage device and waste heat utilization equipment | 202310007557 |
| A heat pipe heat extraction device based on spray cooling and high-temperature kilns | 202310161235 |
Anode Material and Graphitisation Software Copyrights
| Name | Number |
| Safety Control System Software for Box-Type Graphitisation Furnace | 2024SR1724002 |
| Multi-Objective Optimization System Software for Box-Type Graphitisation Furnace | 2024SR1724005 |
| In-Furnace Temperature Field Simulation Software for Box-Type Graphitisation Furnace | 2024SR1723989 |
| Intelligent Power Supply System Software for Box-Type Graphitisation Furnace | 2024SR1724017 |
| In-Furnace Temperature Field Simulation Software for Crucible-Type Graphitisation Furnace | 2024SR1889843 |
| Safety Control System Software for Crucible-Type Graphitisation Furnace | 2024SR1889834 |
| Multi-Objective Optimization System Software for Crucible-Type Graphitisation Furnace | 2024SR1889841 |
| Intelligent Power Supply System Software for Crucible-Type Graphitisation Furnace | 2024SR1889836 |
| Production Flue Gas Control System Software for Graphitisation Furnace | 2024SR1956147 |
| 3D Simulation Software for Monocrystalline Silicon Pulling Furnace | 2024SR1889830 |
| 3D Simulation Software for Polycrystalline Silicon Reduction Furnace | 2024SR1859225 |
| Intelligent Regulation and Control System Software for Heating Network | 2024SR1845651 |
| Cooling and Material Scraping Control System Software for Graphitisation Furnace | 2024SR1845650 |
| Whole Line Load Regulation System Software for Active Cooling System of Graphitisation Furnace | 2024SR1845649 |
| Graphitisation Production Management System Software | 2024SR1845648 |
Patent Porfolio – Analysis
From December 2022 through March 2023, Hunan Youre Technology Co., Ltd filed nine consecutive invention patent applications centered on “waste-heat recovery, rapid cooling, and heat storage utilisation in high-temperature kilns.”
These patents tackle the long cooling cycles, difficult heat recovery, and high energy consumption of traditional Acheson graphitising furnaces and other high-temperature kilns. Their innovations span five key dimensions forming an integrated, staged solution namely heat-source characteristics, heat-exchange media ,heat-balance strategy, dynamic control methods, and safety protection
| Publication No. | Topic | Key Features | Innovation Focus | Industry Value |
| CN115899651A | Wide-temperature-range steam generator | ① Dual circuits: extraction and buffering | Balancing wide-range thermal load; dynamic liquid level control | Converts fluctuating heat into 2 MPa saturated steam, suitable for boilers/power generation |
| ② Two-stage high/low-speed cooling | ||||
| ③ Control steam-generation rate ≤ 20% | ||||
| CN115900373A | Coupled molten-salt heat extraction/storage | ① Low- and high-temperature tanks with dual interconnects | Synchronous heat extraction and release; up to 350–700 °C zones | Continuous storage/release for factory residues; peak-shaving and valley-filling in power systems |
| ② Three-zone “extract-store-release” molten-salt system | ||||
| ③ Closed-loop control of zone ratios | ||||
| CN116007390A | Rapid active cooling of graphitising furnace | ① Buried heat-extraction pipes + circulation pump | Direct internal cooling; 24–48 h discharge | Reduces cycle from 30–40 days to < 7 days, boosting furnace throughput by 4–5× |
| ② Distributed, isolatable loops | ||||
| ③ Direct “pipe-material” heat exchange; non-stratified cooling | ||||
| CN116026153A | Mobile radiative heat-extraction unit | ① Arched reflector + clustered pipes | Radiative-conductive coupling; low heat loss | Suited for low-conductivity powders; reduces manual turning of material |
| ② Combined movement of dome and pipes | ||||
| ③ Layered scraping or suction of top powder + radiative extraction | ||||
| CN117570727A | Mobile powder-suction cooling system | ① Top suction assembly + temperature tracking | “Suction-cooling-suction” loop; no manual shovelling | Enables fully automated, enclosed production line |
| ② Coordination with radiative/inserted heat-extraction units | ||||
| ③ Recycled insulating powder in hoppers | ||||
| CN117570728A | Suction-cooling process (method claims) | Method claims corresponding to CN 117570727 A | Process protection | Dual device and method barrier |
| CN117570729A | Spray-cooling + heat-pipe extraction | ① Heat pipes + exchange chamber + atomizing nozzles | Latent-heat extraction; high-quality steam | Front end for waste-heat boilers and ORC power generation |
| ② Use of droplet latent heat | ||||
| ③ Drainage + vapor-liquid separation | ||||
| CN117602618A | In-furnace heat-extraction graphitising furnace | ① Removable high-temperature insulation boards | Permanent in-furnace installation | Protects pipes during charging/discharge; compatible with strong electric fields |
| ② Post-cooling removal exposes pipes for radiation | ||||
| ③ Quick-locating pillars/grooves in walls | ||||
| CN117606250A | Over-temperature protection system | ① Quartz-sheathed heat pipes + cooling-air film | Prevents heat pipes failing above 1000 °C | Safe cooling of cores above 3000 °C; protects against pipe failure |
| ② Multi-chamber fin plates with flow-control orifices | ||||
| ③ Three-stage temperature-control strategy |
Key R&D Themes
- Dual-Circuit Steam Generation (CN115899651A): Builds on a primary extraction circuit and a buffering circuit to absorb heat surges and uses an algorithm limiting steam-generation rate to 20%, achieving stable steam output across wide temperature swings. This departs from traditional single-stage drum systems and mitigates flash-boiling risk in piping.
- Zoned Molten-Salt Thermal Storage (CN115900373A): Uses alternating low- and high-temperature tanks and closed-loop control of the extraction/release ratio to avoid under- or over-storage. Couples with steam-system to smooth peak heat, enabling nighttime valley-filling storage.
- Embedded Pipe-Cluster + Active Cooling (CN116007390A & CN116026153A): (CN 116007390A) uses buried pipes with high-flow water/CO₂ for deep-bed heat extraction. (CN 116026153A) adds a movable reflector and piped cluster for top-layer powder cooling. They combine into a layered cooling loop from surface to core.
- Spray-Latent-Heat Exchange (CN117570729A): Atomized water droplets in the condensation zone of a heat pipe absorb high latent heat (> 2.2 MJ/kg), producing steam directly to boilers or ORC systems. Ensuring reliable atomizer and phase separation under dusty, SO₂-rich flue gas.
- Pipe-Protection Systems (CN117602618A & CN117606250A): Quartz sheathing, cooling-air films, removable ceramic boards, and multi-chamber fins enable long-term in-furnace installation by shielding heat-extraction pipes from extreme heat and abrasion.
Patent Commercial Applications
- Graphitising-furnace retrofit: Combining buried pipes, removable insulation, and mobile suction cuts cool-down from 30–40 days to < 7 days, boosting annual throughput 4–5× key for lithium-battery anode expansion.
- Alumina/ceramic kilns: Molten-salt loops and spray heat-pipes recover 350–700 °C heat for plant steam or small-scale ORC power.
- Coke-steel waste-heat islands: Over-temperature-protection units can interface with converter and sinter-plant flues for safe, rapid maintenance.
R&D Directions
- High-temperature material resilience: Long-term thermo-mechanical cycling of quartz-clad pipes and ceramic boards needs durability testing.
- Coupled-media control: Threshold-based sampling remains basic. Integrate fiber-optic/infrared imaging for predictive, model-based control.
- Environmental adaptation: Steam and spray loops must address SOₓ/dust corrosion and fouling via online cleaning or coatings.
Concluding Thoughts on the Patent Portfolio
Hunan Youre Technology Co., Ltd has deployed a full “extract-store-reuse” chain (mechanical, chemical, control) forming a robust patent suite for high-temperature kiln cooling and staged waste-heat utilisation. Its core strengths lie in five modular technologies: wide-range steam generation; zoned molten-salt; movable radiative/conductive cooling; spray-latent-heat exchange; and over-temperature protection. The patent portfolio promises substantial cost, energy, and carbon-footprint reductions for graphitising and other high-temperature industrial furnaces.
Hunan Youre Technology Co., Ltd – Maiden 60,000tpa Anode Material Demonstration Project
On 13th June 2025, Gansu Ruizhi New Materials Co., Ltd (subsidiary of Hunan Youre Technology Co., Ltd broke ground on its 60,000 tonnes per annum lithium-ion battery graphite anode material project located in the Hongshagang Energy and Chemical Industry Concentration Zone, Minqin County, Wuwei City, Gansu Province, China, opening up green intelligent manufacturing of lithium-ion battery anode materials.
In recent years, the global new energy vehicle industry has developed rapidly, and the demand for lithium-ion batteries has exploded. As a key link in the production of anode materials, the disadvantages of high energy consumption and high pollution of traditional processes have become increasingly prominent.
In this context, China’s national ” carbon neutrality” strategy and policies clearly list “the green manufacturing of high-energy-consuming new energy materials as a key development direction”. With forward-looking layout, Hunan Youre Technology Co., Ltd developed the Y-ECO graphitisation furnace technology over many years, with “high efficiency, intelligence, safety, and low carbon” as the core, accurately solving the pain points of the industry.

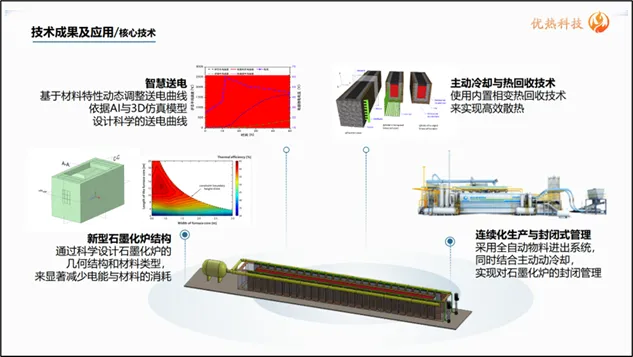

Four Core Anode Material Graphitisation Innovations
Y-ECO graphitisation furnace technology integrates the four core innovations of “new furnace structure design, intelligent power transmission system, active cooling and waste heat recovery, continuous production and closed management”, which completely revolutionizes the high energy consumption, high pollution and low efficiency of traditional graphitisation production:
1. New furnace structure design
Integrating the advantages of box furnace, crucible furnace and internal series furnace, the power consumption per tonne is as low as 4500kWh, the consumption of insulation materials is reduced by 30%, and the uniformity of the thermal field is improved by 50%, which reduces the risk of furnace spraying from the root and greatly improves product consistency.
2. Smart power transmission system
Based on the three-dimensional thermal field simulation model and AI deep learning algorithm, the power transmission curve is adjusted dynamically in real time to avoid energy waste and quality fluctuations caused by manual experience, intelligently adapt to material changes, and greatly reduce the risk of furnace spraying.
3. Active cooling and waste heat recovery
Through the pre-buried heat pipe and phase change heat storage technology, the furnace side cooling efficiency is increased by 50%, the furnace top cooling efficiency is increased by 30%, and the single furnace production cycle is shortened by more than 40%. At the same time, the recovered high-temperature waste heat can be converted into electricity or used for hot water and heating.
4. Continuous production and closed management
The use of negative pressure pneumatic conveying and fully automatic loading and unloading system reduces dust emissions in the whole process by 80%, and cooperates with the closed operation of the furnace top for 90% of the time, which effectively solves the dust and volatile matter organization emission problems in the feeding and discharging process and the power transmission process.
Investment Amount
The total investment of the project is about 1.42 billion CNY (USD$202M). The project covers an area of 97 acres and is built in two phases. The phase-one 60,000tpa of anode material production capacity is expected to be trial-produced by first quarter of 2026. After reaching full production, the annual output value will be nearly 600 million CNY (USD$85.71 million), the annual tax revenue will be 36 million CNY (USD$5.14 million), and 200 people will be employed.
Local Government Welcomes Anode Material Investment

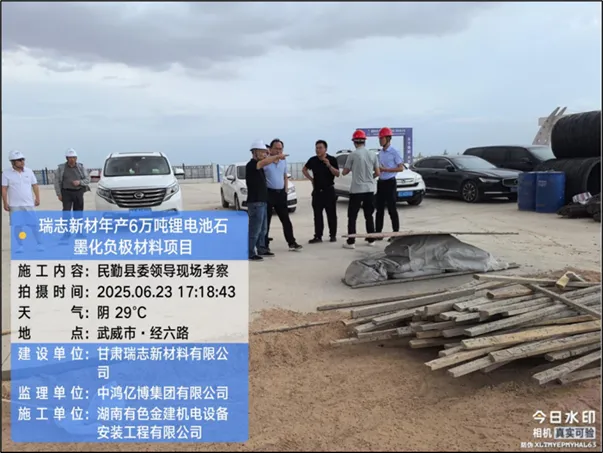

On 27th June 2025, leaders of the Minqin County Party Committee visited the project’s construction site, indicating that this key project focusing on the field of new energy materials is progressing steadily as planned. The project was implemented in Wuwei City. Relying on the rich wind and light resources and innovative technology system in the northwest, it aims to build a leading domestic green graphite anode material production base and inject strong momentum into the development of regional new energy industries.
Since its launch, the project has received high attention and policy support from the local government. At the site inspection, the leaders of the Minqin County Party Committee learned in detail about the project planning, construction progress and technical advantages, and emphasised that they will actively coordinate resources to ensure the smooth implementation of the project in power supply, land leveling and other links.
Use of Clean Energy
It is reported that the project fully utilises the energy advantages of the “wind and light province” in the northwest to achieve 100% green electricity production, and at the same time relies on the local perfect carbon-based raw material industry chain to form an efficient linkage from resources to industry. This “new energy + new materials” collaborative development model not only fits the national low-carbon transformation strategy, but is also expected to drive the cluster development of the northwest energy storage industry and provide key material support for the new energy market along the “Belt and Road”.
At present, the project has completed land acquisition, design planning and preliminary infrastructure construction, and various construction work is progressing in an orderly manner. With the subsequent equipment entry and commissioning work, this modern production base integrating technological innovation and green and low-carbon is expected to become a landmark project of the Northwest new energy materials industry in the near future, and contribute “Gansu power” to the optimisation and upgrading of China’s lithium-ion battery industry chain.
